MP GO! Evolution

MP GO

Maximum reliability and comfort for all types of buildings

A lift with many options for customisation which minimises waiting times and maximises comfort. This model offers outstanding eco-efficiency and reliability thanks to a combination of state-of-the-art gearless and electronic technology designed to provide an unbeatable level of service and connectivity.

Maximum reliability and comfort for all types of buildings

MP GO

Maximum reliability and comfort for all types of buildings

MP GO! Evolution

Maximum reliability and comfort for all types of buildings

MP GO! Evolution

MP GO! Evolution: Technical Features

lift TYPE

Gearless without a machine room

OUTSTANDING IN

Innovation, comfort, efficiency

CAPACITY

4 – 21 People

SPEED

1.0-1.6 – 2.5 m/s

STOPS no.

32 maximum

TYPE OF TRAFFIC

High intensity

MP GO! Evolution: Technical Features

lift TYPE

Gearless without a machine room

OUTSTANDING IN

Innovation, comfort, efficiency

CAPACITY

4 – 21 People

SPEED

1.0-1.6 – 2.5 m/s

STOPS no.

32 maximum

TYPE OF TRAFFIC

High intensity

MP GO! Evolution is an lift constantly updated to maintain the highest level of technology and comfort, as well as energy efficiency. This is endorsed by level A CERTIFICATION in the VDI energy classification.

RECOMMENDED FOR THE FOLLOWING BUILDINGS TYPES

Residential

Hotel

Office

Mall

Transport and public buildings

Hospital

High altitude

Residential

Office

Transport and
public buildings

High altitude

Hotel

Mall

Hospital

High adaptabilityand easy installation

Excellent adaptability to the shaft and the performance required by the customer.

Energy Efficiency and Commitment to the Environment

Level A certification in the VDI energy classification thanks to its LED car lighting, stand by operation shutdown and its gearless low consumption technology.

User’s peace of mind

Automatic rescue as standard. Connected lift that allows the team to communicate, offering real-time information about its use and status, increasing the capabilities of preventive maintenance.

AESTHETIC Wide range of finishes

Wide range of car finishes. Design, customize and 3D display your car.

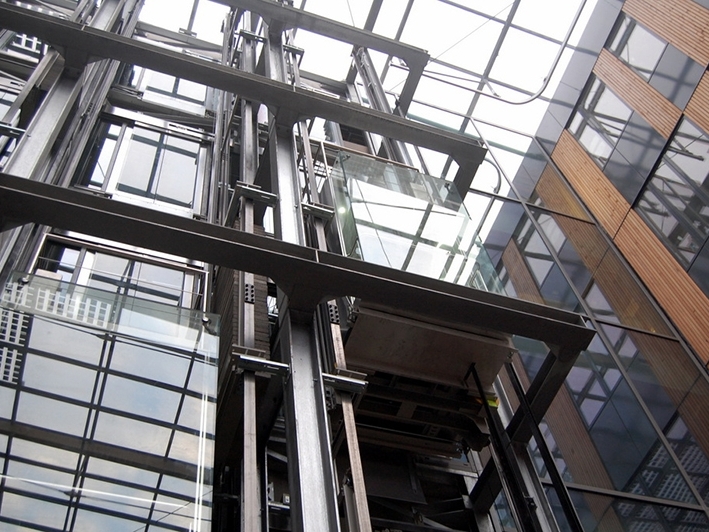

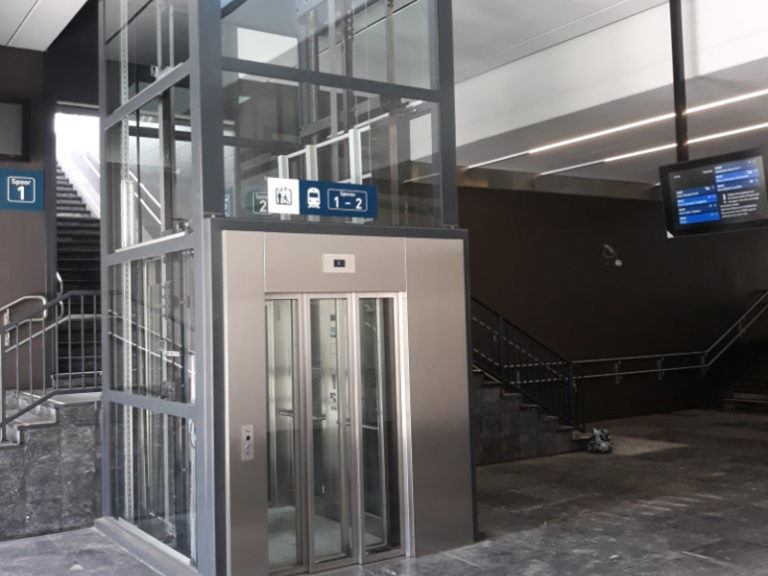

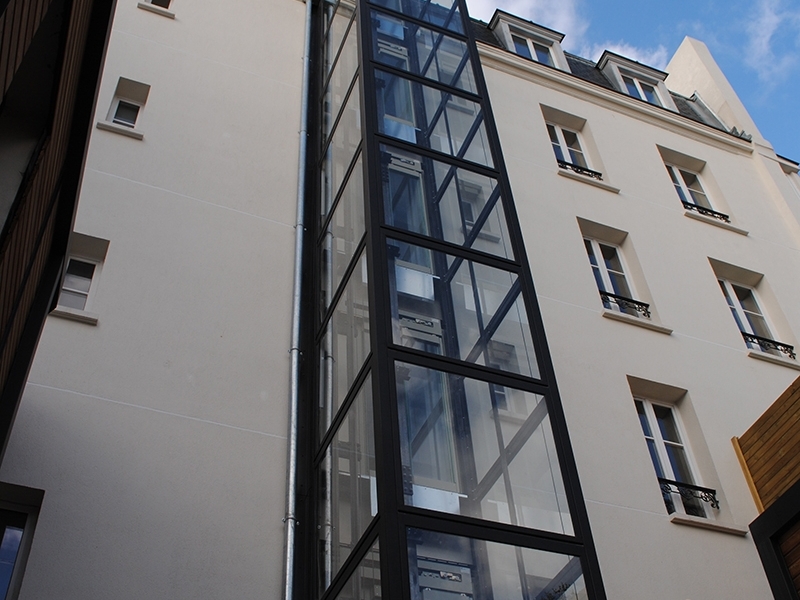

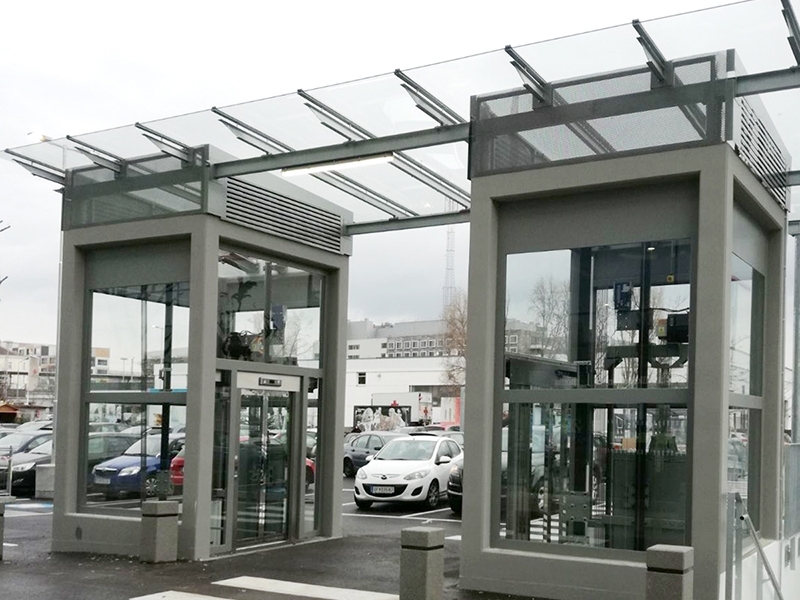

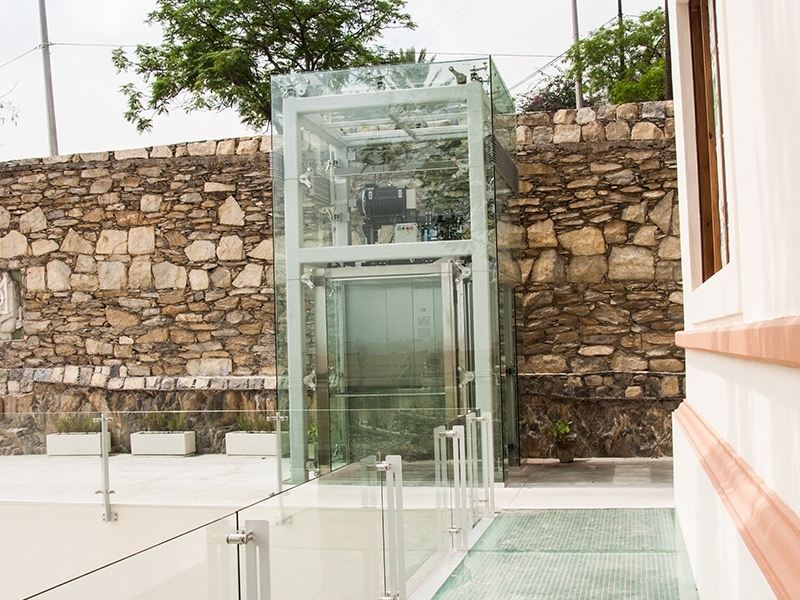

MP GO! Evolution in pictures

Descubre MP GO! Images evolution

Discover MP GO! Evolution

CHECK REFERENCES

Here’s the technical documentation you need

DRAWINGS AND DIMENSIONS

Capacidad	Velocidad (m/seg)	Dimensiones cabina (mm) Altura 2100 mm	Dimensiones hueco (mm)	Luz de puertas (mm)	Planos Memoria
MPGO! Evolution: de 4 a 21 personas
SIN CUARTO DE MÁQUINAS (Dimensiones con puertas T2)
montacamas	montacargas	pasajeros	4	320	1,0	800	1100	1350	1350	1025	4400	700
5	375	1,0	950	1050	1450	1350	1024	4400	700
6	480	1,0/1,6	1000	1250	1500	1500/1600	1025/1155	3400/3600	800
8	630	1,0/1,6	1100	1400	1600	1650	1025/1155	3400/3600	900
10	800	1,0/1,6	1200	1500	1700/1750	1750	1025/1300	3400/3650	900
		13	1000	1,0/1,6	1100	2100	1600/1650	2350	1025/1400	3400/3650	900
13	1000	1,0/1,6	1100	2100	1750	2350	1025/1400	3750	1000
	15	1125	1,0/1,6	1200	2150	1700/1750	2400	1025/1400	3400/3650	1000
	17	1275	1,0/1,6	1200	2300	1800	2700	1200/1400	3400/3650	1000
21	1600	1,0/1,6	1400	2400	2000	2750	1200/1400	3400/3650	1100
SIN CUARTO DE MÁQUINAS (Dimensiones con puertas C2)
			6	480	1,0/1,6	1000	1250	1800	1500	1025/1155	3400/3600	800
8	630	1,0/1,6	1100	1400	1950	1650	1025/1155	3750	900
10	800	1,0/1,6	1200	1500	1950	1750	1025/1300	3400/3650	900
		13	1000	1,0/1,6	1100	2100	1950	2350	1025/1400	3750	900
15	1125	1,0/1,6	1200	2150	1950	2400	1025/1400	3400/3650	900
Descripción técnica (EN81-20/50)
Nuestra flexibilidad nos permite adaptarnos a dimensiones más reducidas. Consúltenos.

EN 81-20/50

Capacidad	Velocidad (m/seg)	Dimensiones cabina (mm) Altura 2100 mm	Dimensiones hueco (mm)	Luz de puertas (mm)	Planos Memoria
MPGO! Evolution: de 4 a 21 personas
SIN CUARTO DE MÁQUINAS (Dimensiones con puertas T2)
montacamas	montacargas	pasajeros	4	320	1,0	800	1100	1350	1350	1025	4400	700
5	375	1,0	950	1050	1450	1350	1024	4400	700
6	480	1,0/1,6	1000	1250	1500	1500/1600	1025/1155	3400/3600	800
8	630	1,0/1,6	1100	1400	1600	1650	1025/1155	3400/3600	900
10	800	1,0/1,6	1200	1500	1700/1750	1750	1025/1300	3400/3650	900
		13	1000	1,0/1,6	1100	2100	1600/1650	2350	1025/1400	3400/3650	900
13	1000	1,0/1,6	1100	2100	1750	2350	1025/1400	3750	1000
	15	1125	1,0/1,6	1200	2150	1700/1750	2400	1025/1400	3400/3650	1000
	17	1275	1,0/1,6	1200	2300	1800	2700	1200/1400	3400/3650	1000
21	1600	1,0/1,6	1400	2400	2000	2750	1200/1400	3400/3650	1100
SIN CUARTO DE MÁQUINAS (Dimensiones con puertas C2)
			6	480	1,0/1,6	1000	1250	1800	1500	1025/1155	3400/3600	800
8	630	1,0/1,6	1100	1400	1950	1650	1025/1155	3750	900
10	800	1,0/1,6	1200	1500	1950	1750	1025/1300	3400/3650	900
		13	1000	1,0/1,6	1100	2100	1950	2350	1025/1400	3750	900
15	1125	1,0/1,6	1200	2150	1950	2400	1025/1400	3400/3650	900
Descripción técnica (EN81-1/2)

EN 81-1/2

DOWNLOAD OUR CATALOGUECHECK OUT OUR PRODUCT DOCUMENTATIONDO YOU NEED THE DATA SHEET?

DRAWINGS AND DIMENSIONS

Capacidad	Velocidad (m/seg)	Dimensiones cabina (mm) Altura 2100 mm	Dimensiones hueco (mm)	Luz de puertas (mm)	Planos Memoria
MPGO! Evolution: de 4 a 21 personas
SIN CUARTO DE MÁQUINAS (Dimensiones con puertas T2)
montacamas	montacargas	pasajeros	4	320	1,0	800	1100	1350	1350	1025	4400	700
5	375	1,0	950	1050	1450	1350	1024	4400	700
6	480	1,0/1,6	1000	1250	1500	1500/1600	1025/1155	3400/3600	800
8	630	1,0/1,6	1100	1400	1600	1650	1025/1155	3400/3600	900
10	800	1,0/1,6	1200	1500	1700/1750	1750	1025/1300	3400/3650	900
		13	1000	1,0/1,6	1100	2100	1600/1650	2350	1025/1400	3400/3650	900
13	1000	1,0/1,6	1100	2100	1750	2350	1025/1400	3750	1000
	15	1125	1,0/1,6	1200	2150	1700/1750	2400	1025/1400	3400/3650	1000
	17	1275	1,0/1,6	1200	2300	1800	2700	1200/1400	3400/3650	1000
21	1600	1,0/1,6	1400	2400	2000	2750	1200/1400	3400/3650	1100
SIN CUARTO DE MÁQUINAS (Dimensiones con puertas C2)
			6	480	1,0/1,6	1000	1250	1800	1500	1025/1155	3400/3600	800
8	630	1,0/1,6	1100	1400	1950	1650	1025/1155	3750	900
10	800	1,0/1,6	1200	1500	1950	1750	1025/1300	3400/3650	900
		13	1000	1,0/1,6	1100	2100	1950	2350	1025/1400	3750	900
15	1125	1,0/1,6	1200	2150	1950	2400	1025/1400	3400/3650	900
Descripción técnica (EN81-20/50)
Nuestra flexibilidad nos permite adaptarnos a dimensiones más reducidas. Consúltenos.

EN 81-20/50

Capacidad	Velocidad (m/seg)	Dimensiones cabina (mm) Altura 2100 mm	Dimensiones hueco (mm)	Luz de puertas (mm)	Planos Memoria
MPGO! Evolution: de 4 a 21 personas
SIN CUARTO DE MÁQUINAS (Dimensiones con puertas T2)
montacamas	montacargas	pasajeros	4	320	1,0	800	1100	1350	1350	1025	4400	700
5	375	1,0	950	1050	1450	1350	1024	4400	700
6	480	1,0/1,6	1000	1250	1500	1500/1600	1025/1155	3400/3600	800
8	630	1,0/1,6	1100	1400	1600	1650	1025/1155	3400/3600	900
10	800	1,0/1,6	1200	1500	1700/1750	1750	1025/1300	3400/3650	900
		13	1000	1,0/1,6	1100	2100	1600/1650	2350	1025/1400	3400/3650	900
13	1000	1,0/1,6	1100	2100	1750	2350	1025/1400	3750	1000
	15	1125	1,0/1,6	1200	2150	1700/1750	2400	1025/1400	3400/3650	1000
	17	1275	1,0/1,6	1200	2300	1800	2700	1200/1400	3400/3650	1000
21	1600	1,0/1,6	1400	2400	2000	2750	1200/1400	3400/3650	1100
SIN CUARTO DE MÁQUINAS (Dimensiones con puertas C2)
			6	480	1,0/1,6	1000	1250	1800	1500	1025/1155	3400/3600	800
8	630	1,0/1,6	1100	1400	1950	1650	1025/1155	3750	900
10	800	1,0/1,6	1200	1500	1950	1750	1025/1300	3400/3650	900
		13	1000	1,0/1,6	1100	2100	1950	2350	1025/1400	3750	900
15	1125	1,0/1,6	1200	2150	1950	2400	1025/1400	3400/3650	900
Descripción técnica (EN81-1/2)

EN 81-1/2

DOWNLOAD OUR CATALOGUECHECK OUT OUR PRODUCT DOCUMENTATIONDO YOU NEED THE DATA SHEET?

Do you have any questions about our documents?

Product regulations

EN 81-70

Accessibility to people.

EN 81-71

Vandal resistant lifts.

EN 81-72

Fire lifts.

EN 81-73

lift behavior in case of fire.

EN 81-21

Existing buildings.

EN 81-77

lifts subject to seismic conditions.
