MP Hydro

A reliable lift designed to optimise space

This is the ideal solution for low-rise buildings with medium-low levels of traffic. Its versatility means it makes the very most of the space available, allowing for big cars in small spaces.

MP Hydro: Technical Features

lift TYPE

Hydraulic

EXCELS IN

Versatility and reliability

CAPACITY

2 – 86 People

SPEED

0.5 – 0.63 m/s

STOPS no.

6 maximum

OPTIMISATION OF SPACE

Big cars for small spaces

MP Hydro: Technical Features

lift TYPE

Hydraulic

EXCELS IN

Versatility and reliability

CAPACITY

2 – 86 People

SPEED

0.5 – 0.63 m/s

STOPS no.

6 maximum

SPACE OPTIMIZATION

Large cars in tight spaces

This lift offers outstanding versatility for new and existing buildings. It provides excellent shaft performance and is environmentally friendly (Pro-Eco drive equipment).

RECOMMENDED FOR THE FOLLOWING BUILDINGS TYPES

Residential

Hotel

Office

Mall

Transport and public buildings

Hospital

Residential

Office

Transport and
public buildings

Hotel

Mall

Hospital

Peace of mind for users

An automatic rescue system is included as standard, meaning peace of mind for users. As it is a connected lift, it is able to relay real-time information on its use and status, thereby taking preventive maintenance to a whole new level and paving the way for a new generation of services.

Low environmental impact over its life

This is our most environmentally-friendly lift, designed to make up to 150 trips/day. According to the VDI, this is what is needed for a residential building with 20 flats.

Highly versatile and easy to install

This is the perfect solution for non-standard shafts and buildings with medium-low levels of traffic. It can be installed in buildings with very small pits and shafts, or where there is very little headroom, allowing more passengers to travel at once between up to three landings. Moreover, this is an exceptionally easy life to install.

Aesthetics. A wide range of finishes

With a wide range of car finishes, this is the perfect solution for panoramic lifts with only one opaque wall.

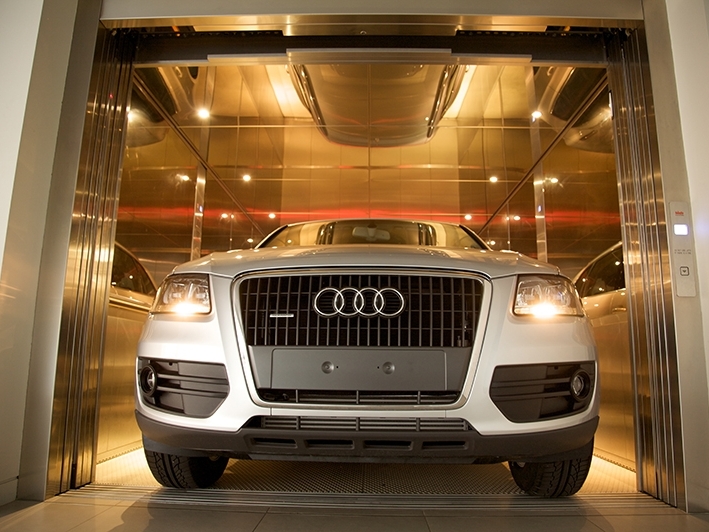

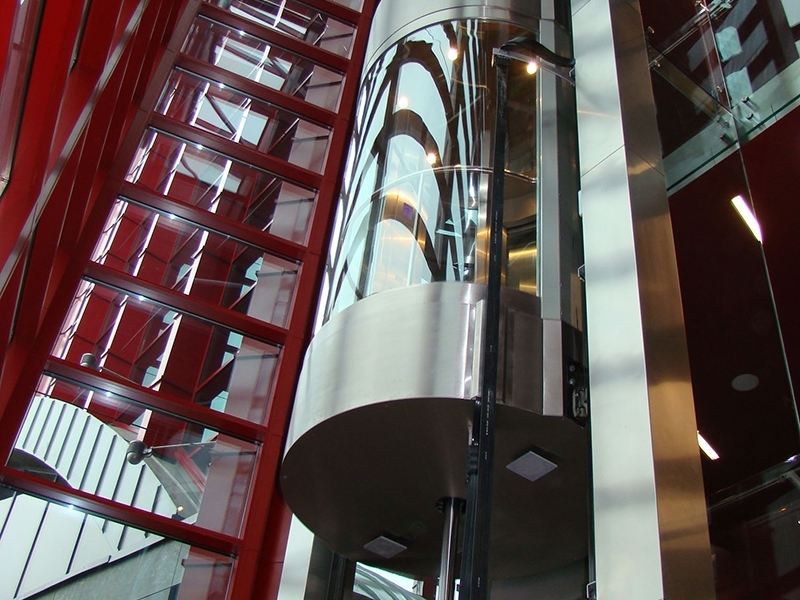

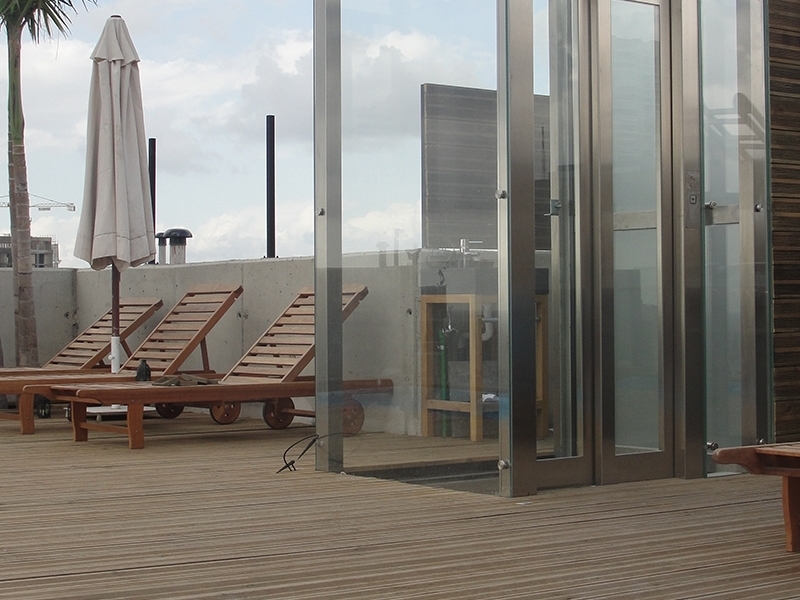

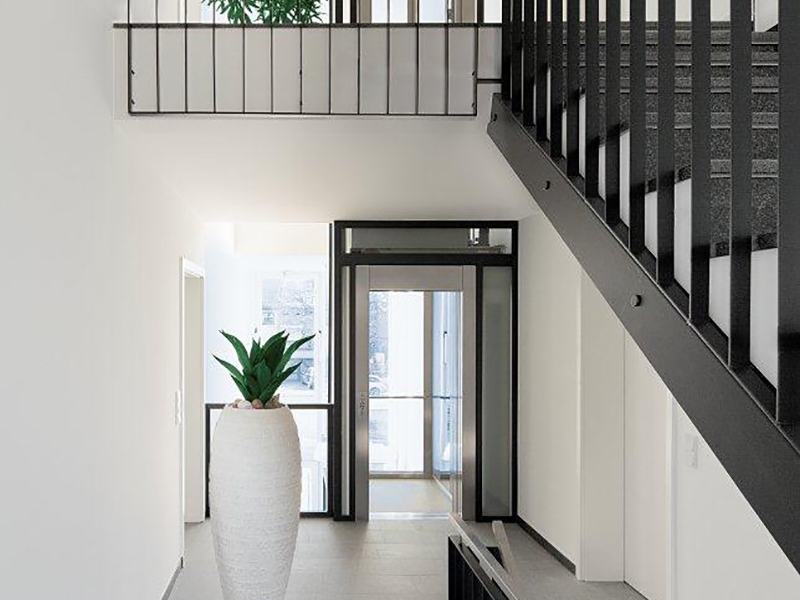

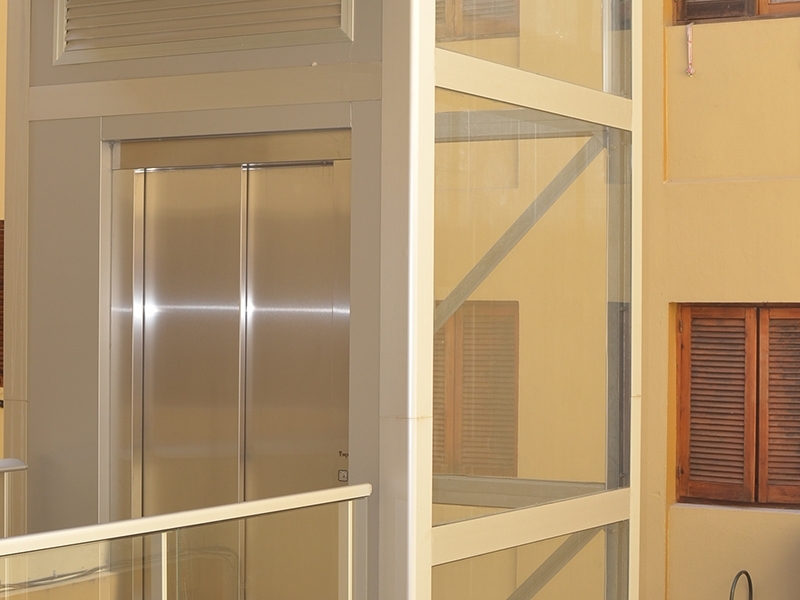

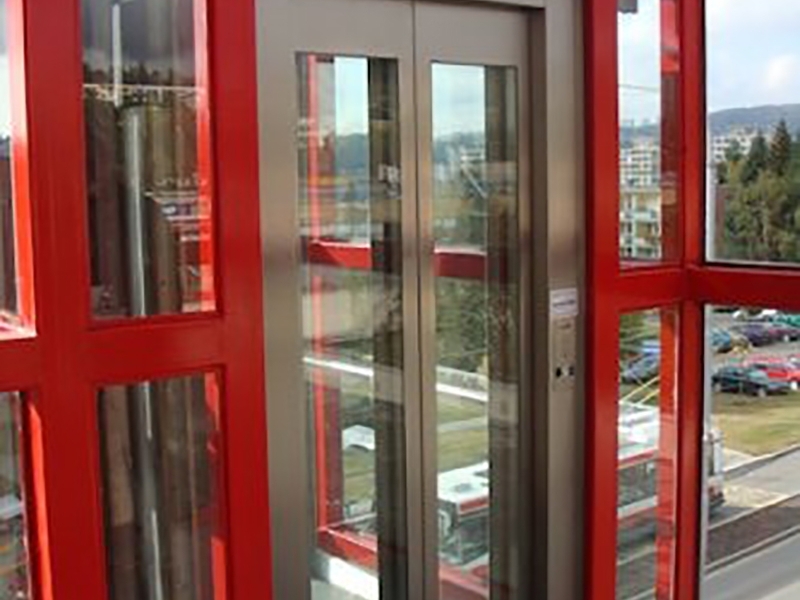

MP Hydro in pictures

Here’s the technical documentation you need

Optional standards

EN 81-70

Accessibility to lifts for persons.

EN 81-71

Vandal resistant lifts.

EN 81-73

Behaviour of lifts in the event of fire.

FOR OTHER STANDARDS, PLEASE ASK

We’re here to help you
Write or call us at 902 197 277

		Capacity		Speed (m/s)	Car dimensions (mm) Height 2100 mm		Shaft dimensions (mm)				Drawings Project Specifications
		People	Load (kg)	Speed (m/s)	Width	Depth	Width	Depth	Pit	Headroom	DWG	PDF

		MACHINE ROOMLESS
	passengers	4	320	0,63	800	1100	1270	1350	1050	3350
		5	375	0,63	950	1050	1370	1300	1050	3350
		6	480	0,63	1000	1250	1420	1500	1050	3350
		8	630	0,63	1100	1400	1520	1650	1050	3350
		10	800	0,5	1200	1500	1620	1750	1050	3350
		13	1000	0,5	1100	2100	1600	2350	1300	3350
		WITH MACHINE ROOM
		4	320	0,63	800	1100	1270	1350	1050	3350
		5	375	0,63	950	1050	1370	1300	1050	3350
		6	480	0,63	1000	1250	1420	1500	1050	3350
		8	630	0,63	1100	1400	1520	1650	1050	3350
good_lifts		10	800	0,5	1200	1500	1620	1750	1050	3350
		13	1000	0,5	1100	2100	1600	2350	1300	3350
		17	1275	0,5	1500	1800	2000	2150	1300	3800
		20	1500	0,5	1900	1750	2700	2150	1300	3800
		26	2000	0,5	2000	2100	2950	2500	1300	3800
		33	2500	0,5	2000	2500	3050	2950	1300	3800
		40	3000	0,5	2300	2500	3350	2900	1300	3800
		46	3500	0,5	2500	2600	3550	3000	1300	3800
		53	4000	0,5	2600	2800	3650	3200	1300	3800
		60	4500	0,5	2600	3100	3650	3500	1300	3800
		66	5000	0,5	2600	3400	3650	3800	1400	3800
		73	5500	0,4	2600	3700	3650	4100	1400	3800
		80	6000	0,4	2600	4000	3650	4400	1400	3800
		86	6500	0,4	2600	4300	3650	4700	1400	3800
	bed_lifts	13	1000	0,5	1100	2100	1750	2400	1300	3800
		17	1275	0,5	1200	2300	1750	2600	1300	3800
		21	1600	0,5	1400	2400	2150	2700	1300	3800
		26	2000	0,5	1500	2700	2450	3050	1300	3800
		33	2500	0,5	1800	2700	2750	3050	1300	3800
	car_lifts	40	3000	0,2	2300	4600	3500	5150	1300	3800
		46	3500	0,2	2300	5450	3500	6000	1300	3800
		53	4000	0,2	2500	5850	3750	6400	1300	3800
		60	4500	0,2	2700	6000	3950	6700	1400	3800
Technical description (EN81-20/50)
Our flexibility allows us to adapt to reduced dimensions. Please enquire for further details.

		Capacity		Speed (m/seg)	Car dimensions (mm) Height 2100 mm		Shaft dimensions (mm)				Drawings Project Specifications
		People	Load(Kg)	Speed (m/seg)	Width	Depth	Width	Depth	Pit	Overhead clearance	DWG	PDF

		MACHINE ROOMLESS
	passengers	4	320	0,63	900	1000	1350	1400	1050	3600
		6	480	0,63	1000	1250	1450	1550	1050	3600
		8	630	0,63	1100	1400	1550	1700	1050	3600
		10	800	0,5	1350	1400	1875	1700	1400	3600
		13	1000	0,5	1100	2100	1875	2400	1400	3600
		WITH MACHINE ROOM
		4	320	0,63	900	1000	1350	1400	1050	3600
		6	480	0,63	1000	1250	1450	1550	1050	3600
		8	630	0,63	1100	1400	1550	1700	1050	3600
good_lifts		10	800	0,5	1350	1400	1800	1700	1400	3600
		13	1000	0,5	1100	2100	1550	2400	1400	3600
		17	1275	0,5	1700	1500	2500	1900	1400	3600
		20	1500	0,5	1900	1750	2700	2050	1400	3600
		21	1600	0,5	1700	2000	2500	2350	1400	3600
		26	2000	0,5	2000	2100	2900	2450	1400	3600
		33	2500	0,5	2000	2500	2900	2850	1400	3600
		40	3000	0,2	2300	2500	3100	3200	1400	3600
		46	3500	0,2	2500	2600	3300	3400	1400	3600
		53	4000	0,2	2600	2800	3400	3500	1400	3600
		60	4500	0,2	2600	3100	3400	3500	1400	3600
		66	5000	0,5	2600	3400	3400	3750	1400	3600
		73	5500	0,4	2600	3700	3500	4050	1400	3600
		80	6000	0,4	2600	4000	3500	4350	1400	3600
		86	6500	0,4	2600	4300	3500	4650	1400	3600
	bed_lifts	13	1000	0,5	1100	2100	1700	2450	1400	3600
		16	1275	0,5	1200	2400	1800	2750	1400	3600
		21	1600	0,5	1400	2400	2400	2750	1400	3600
		26	2000	0,5	1500	2700	2450	3050	1400	3600
		33	2500	0,5	1800	2700	2750	3050	1400	3600
	car_lifts	40	3000	0,2	2300	4600	3200	4900	1400	3600
		46	3500	0,2	2300	5450	3200	5750	1400	3600
		53	4000	0,2	2500	5850	3400	6200	1400	3600
		60	4500	0,2	2700	6000	3600	6300	1400	3600
Technical description (EN81-1/2)
